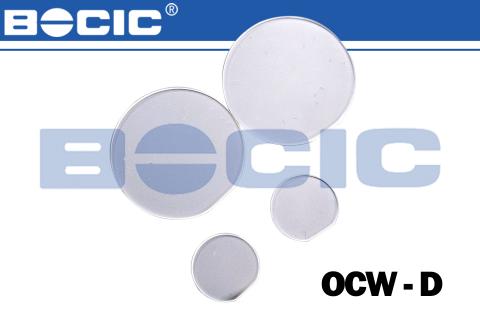

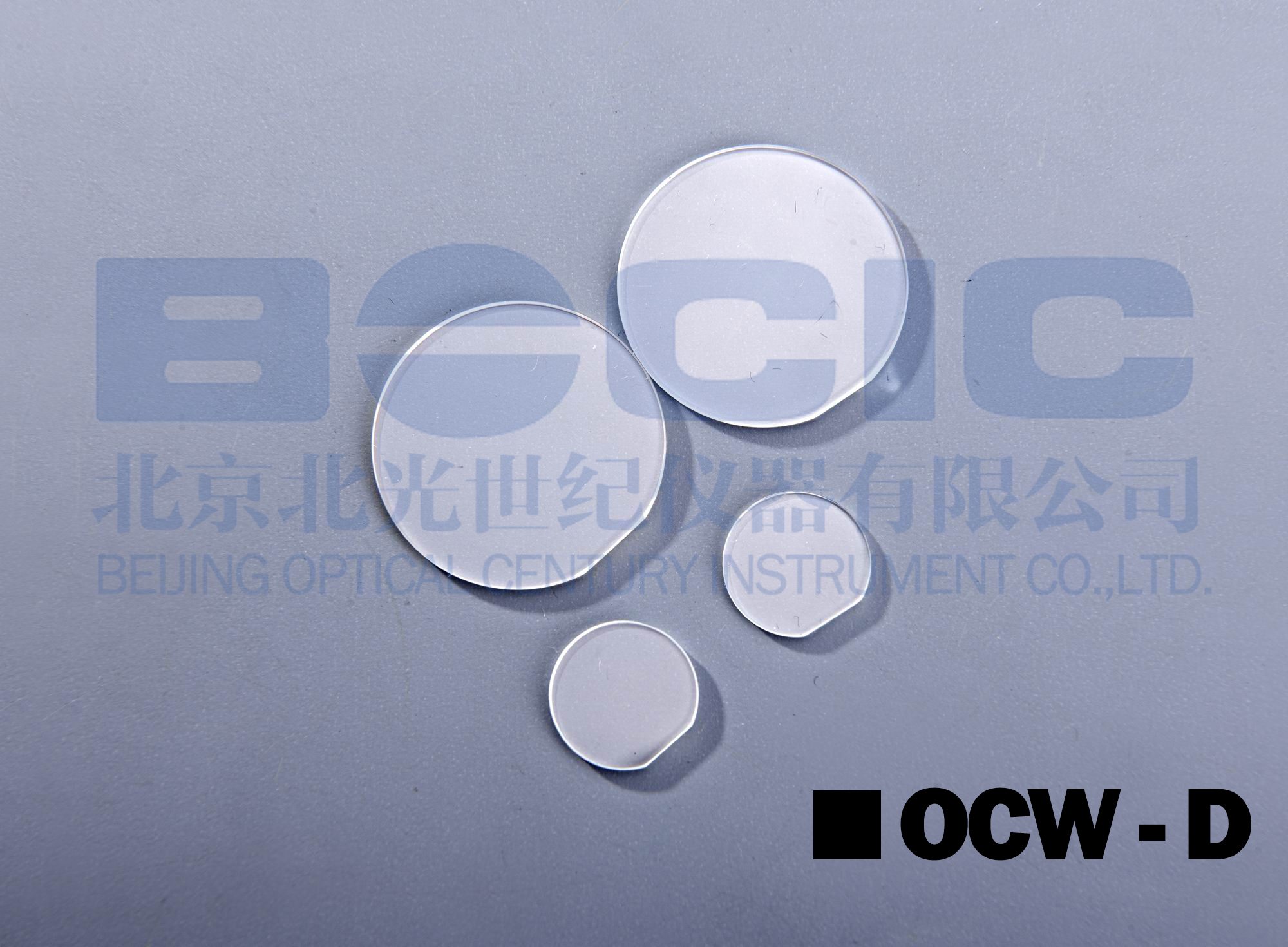

OCW-D series multi order waveplate
1. Material: Crystal Quartz
2. Dimension Tolerance: +0.0/-0.2mm
3. Wavefront Distortion: λ/8@632.8nm
4. Retardation Tolerance: λ/100
5. Parallelism: <1 arc second
6. Surface Quality: 20/10
7. Clear Aperture: >90%
8. Coating: R<0.25%@central wavelength
9. Damage Threshold: >10J/cm2, 20ns, 20Hz
- description
- parameters
|
Model |
Retardation |

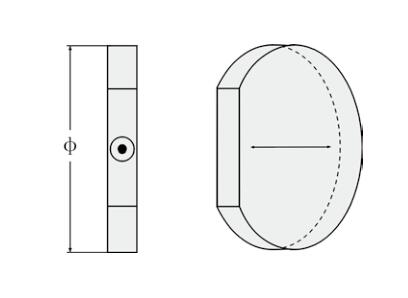

Diameter(mm) |
Wavelength(nm) |
|
OCW-D-01 |
λ/2 |
10 |
248 - 1550 |
|
OCW-D-02 |
λ/2 |
12.7 |
248 - 1550 |
|
OCW-D-03 |
λ/2 |
15 |
248 - 1550 |
|
OCW-D-04 |
λ/2 |
20 |
248 - 1550 |
|
OCW-D-05 |
λ/2 |
25.4 |
248 - 1550 |
|
OCW-D-06 |
λ/2 |
30 |
248 - 1550 |
|
OCW-D-07 |
λ/2 |
10 |
248 - 1550 |
|
OCW-D-08 |
λ/2 |
12.7 |
248 - 1550 |
|
OCW-D-09 |
λ/2 |
15 |
248 - 1550 |
|
OCW-D-10 |
λ/2 |
20 |
248 - 1550 |
|
OCW-D-11 |
λ/2 |
25.4 |
248 - 1550 |
|
OCW-D-12 |
λ/2 |
30 |
248 - 1550 |
